One Screen Press.
Three Finishing Lines.

Built on the SAGLIN-GST-1060 stop-cylinder screen press, our finishing lines add cold foil stamping, hologram cast & cure transfer, and spot UV coating inline — engineered for premium packaging at industrial speeds.

4,000sheets/h · UV & hologram
Spot UV / Hologram
2,500sheets/h · cold foil
Cold Foil Stamping
B11060×740 mm
Maximum Sheet
Explore the Three Lines View Applications
EAC Support
SAGLIN screen printing cold foil and hologram finishing line — SAGLIN-GST-1060 screen press feeding SAGLIN-GUVY-1060ACS
Line shown: SAGLIN-GST-1060 screen press → SAGLIN-GUVY-1060ACS
RU

Russia: HD RUS LLC strategic line partner

Local installation, EAC certification support, operator training in Russian, and aftersales service across the Russian Federation and CIS — handled by HD RUS LLC (Khimki, Moscow region).

CE EAC RoHS
The Platform

Screen press first. Finishing inline.

Every SAGLIN finishing line starts with the same foundation: the SAGLIN-GST-1060 full-automatic stop-cylinder screen press. Stop-cylinder technology delivers the registration accuracy (≤0.1 mm) and consistency that premium decoration demands, at speeds up to 4,000 sheets per hour. From that base, you splice on the finishing unit your packaging mix requires.

“The screen press is the platform. Cold foil, hologram, and spot UV are modular units that bolt onto it — start with one process, add the others as your business grows.”

Three configurations cover the premium packaging spectrum. The cold foil line is the volume workhorse for metallic decoration. Add a hologram cast & cure unit for anti-counterfeit security. Or run a dedicated spot UV coating line for high-gloss and textured varnish effects. All three share the same screen-press base, the same modular splicing design, and the same global-brand component standard.

Every line ships with electrical and pneumatic specifications adapted for the Russian and CIS markets (380V / 50Hz, EAC support), and is installed and commissioned by our partner HD RUS LLC in the Moscow region.

Why converters choose SAGLIN lines

  • Stop-cylinder screen press base — ≤0.1 mm registration, up to 4,000 sheets/h
  • Modular splicing — start with one process, add others later
  • Cold foil at 2,500 sheets/h; spot UV and hologram up to 4,000 sheets/h
  • No engraved dies — artwork changes use screens and plates only
  • Cold-air paper receiving prevents post-cure deformation
  • Connects to offset, gravure, and UV varnishing presses
Line Configurations

Three lines, one platform.

One flagship cold foil line plus two optional configurations — all built on the SAGLIN-GST-1060 stop-cylinder screen press.

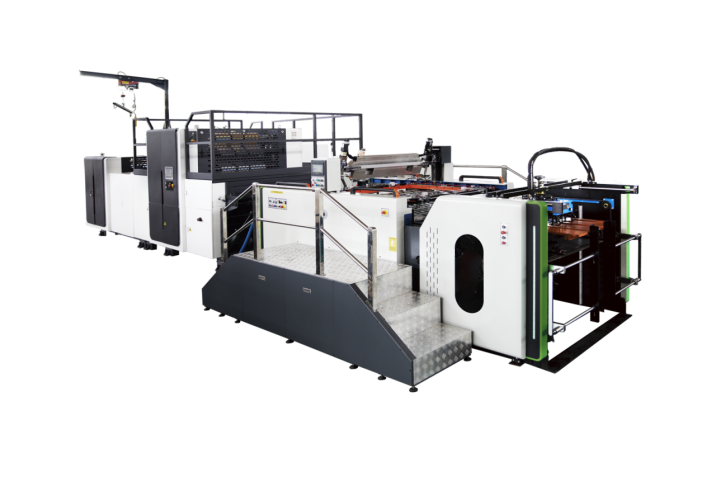

★ Flagship Line SAGLIN Screen Cold Foil Stamping Line — SAGLIN-GST-1060 + SAGLIN-GUVY-1060CS
SAGLIN-GST-1060 + SAGLIN-GUVY-1060CS

Screen Cold Foil Stamping Line

Screen press + cold foil & spot UV unit

The volume route to metallic decoration. Stop-cylinder screen printing plus inline cold foil stamping and spot UV varnishing — cold foil transferred through UV-curable adhesive at room temperature, no engraved dies, no heat management.

  • Cold foil stamping
  • Spot UV varnishing
  • 4,000 sheets/h (UV)
  • 2,500 sheets/h (cold foil)
  • UV lamp 8 kW × 3
  • Total power ≈ 75 kW
View Full Specifications →
Option · Hologram SAGLIN Screen Cold Foil & Hologram Transfer Line — SAGLIN-GUVY-1060ACS
SAGLIN-GST-1060 + SAGLIN-GUVY-1060ACS

Screen Cold Foil & Hologram Transfer Line

Screen press + cold foil, hologram & spot UV unit

All three premium decorations on one line. Adds hologram cast & cure transfer to the cold foil platform — the tear-and-no-film characteristic that cannot be replicated by composite lamination. Built for anti-counterfeit tobacco, alcohol, and pharmaceutical packaging.

  • Cold foil stamping
  • Hologram cast & cure
  • Spot UV varnishing
  • UV lamp 8 kW × 5
  • 4,000 / 2,500 sheets/h
  • Total power ≈ 94 kW
View Full Specifications →

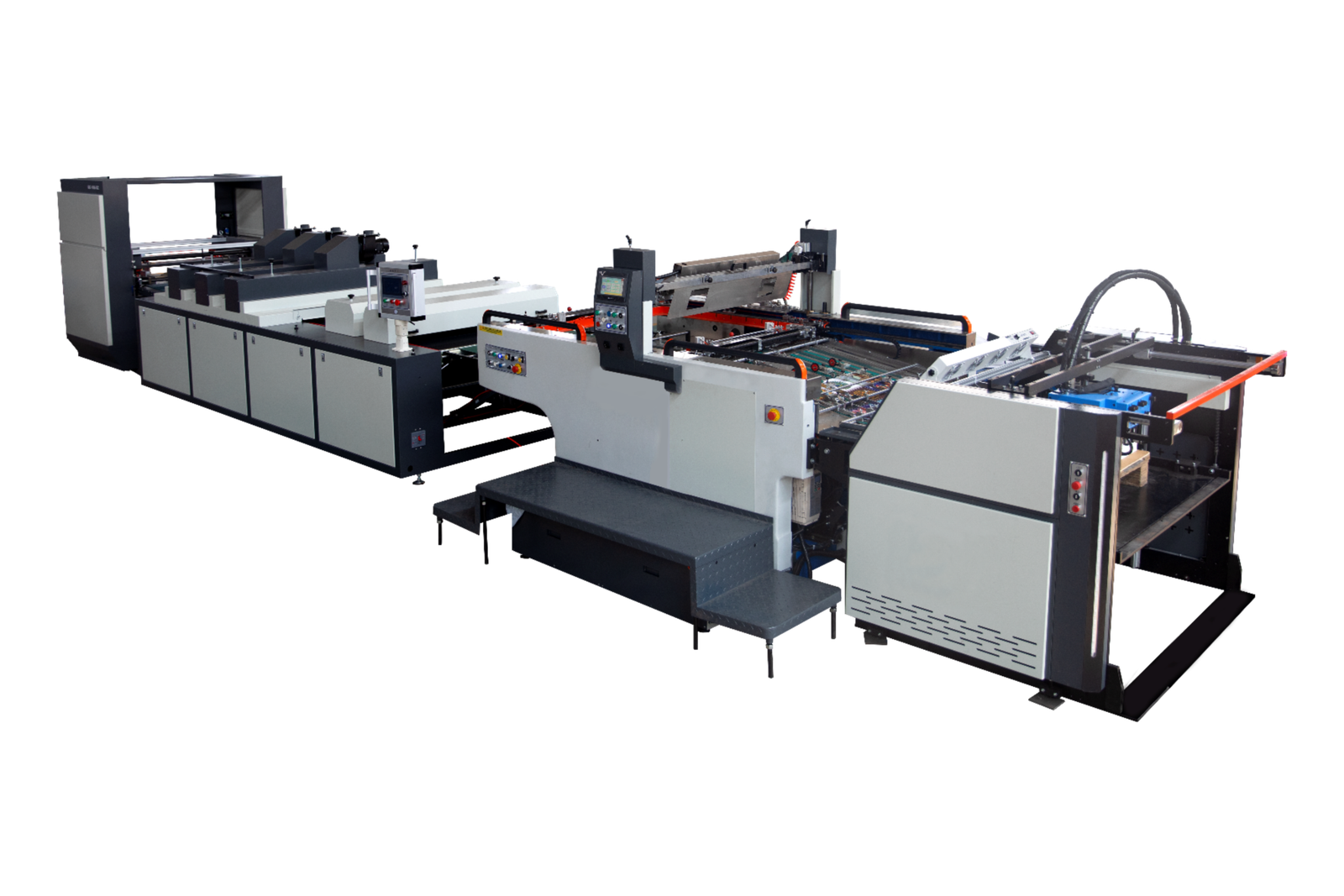

Option · Spot UV SAGLIN Screen Spot UV Coating Line — SAGLIN-GUV/IR-1060
SAGLIN-GST-1060 + SAGLIN-GUV/IR-1060

Screen Spot UV Coating Line

Screen press + UV / IR coating & curing unit

A dedicated high-gloss and textured varnish line. Stop-cylinder screen coating with a UV/IR curing tunnel — 1,100 mm effective curing width, conveyor speed up to 50 m/min, with a dedicated wrinkle-effect lamp set for tactile matte-on-gloss finishes.

  • Spot UV coating
  • Wrinkle / texture effect
  • UV lamp 10 kW × 3
  • Curing width 1,100 mm
  • Conveyor 0–50 m/min
  • Total power ≈ 40 kW
View Full Specifications →
How to Choose

Match the line to your packaging.

Each line shares the SAGLIN-GST-1060 screen press base. The difference is the finishing unit you splice onto it.

LINE 01 · FLAGSHIP
Cold Foil

Screen Cold Foil Stamping Line

The volume workhorse. Metallic cold-foil decoration plus spot UV gloss on a single screen-press line — without engraved dies.

Best for: cosmetics packaging, wine & spirits cartons, luxury cardboard boxes
LINE 02 · OPTION
+ Hologram

Cold Foil & Hologram Transfer Line

Adds hologram cast & cure transfer for anti-counterfeit security. Three premium decorations on one inline pass.

Best for: tobacco & alcohol packaging, anti-counterfeit pharma, premium gift boxes
LINE 03 · OPTION
Spot UV

Screen Spot UV Coating Line

A dedicated varnish line for high-gloss, spot-gloss, and tactile wrinkle-texture effects, with a wide UV/IR curing tunnel.

Best for: premium publication covers, high-gloss retail cartons, textured finishes
Why Cold Foil & Screen Finishing

Key advantages versus hot stamping.

−50%
Energy Savings

Room-temperature UV adhesive curing vs. heated stamping dies

0
Engraved Dies

Artwork changes use screens and plates only — instant turnaround

≤0.1 mm
Registration

Stop-cylinder screen press accuracy for premium decoration

3-in-1
Process Stack

Cold foil + hologram + spot UV on one screen-press line

Applications

Where SAGLIN lines perform.

Engineered for premium packaging segments where decoration drives shelf appeal and where anti-counterfeit features are commercially required.

Tobacco & Alcohol

Cigarette & Wine Cartons

Hologram anti-counterfeit on cigarette packs, metallic cold-foil decoration on wine and spirits cartons. The hologram line runs all three processes in a single pass.

Premium Cosmetics

Perfume & Skincare Boxes

Cold-foil metallic effects with spot UV gloss on luxury cosmetics packaging. The cold foil line is the workhorse of premium beauty converters.

Pharmaceutical

Anti-Counterfeit Medicine

Hologram transfer for tamper-evident pharmaceutical cartons. The hologram line delivers anti-counterfeit features without separate finishing steps.

Gift & Premium

Festival & Retail Packaging

Festival gift boxes, premium retail cartons, and high-gloss publication covers. The spot UV line handles textured and tactile varnish effects.

Modular Splicing

Start with one process. Add the rest.

SAGLIN finishing lines use a modular splicing design — compact structure, strong compatibility. Run a single unit today, then bolt on additional finishing modules as your packaging mix grows, without replacing the screen-press base.

Line height, conveyor speed, and electrical specification are all customisable to match your factory’s existing equipment baseline. Lines also connect to your existing presses.

  • Offset printing presses (Heidelberg, KBA, Komori, Mitsubishi)
  • SAGLIN-GST-1060 stop-cylinder screen press base
  • Spot UV / IR varnishing & curing units
  • Single-color gravure printing presses
Inline integration: SAGLIN-GST-1060 stop-cylinder screen press feeding the cold foil finishing unit
Configuration shown: SAGLIN-GST-1060 screen press line
Screen Finishing FAQ

Process, line configuration & investment questions.

Which of the three lines should I start with?
All three share the same SAGLIN-GST-1060 stop-cylinder screen press base — the difference is the finishing unit spliced onto it. Start with the Screen Cold Foil Stamping Line (GST-1060 + GUVY-1060CS) if metallic decoration is your volume work: cold foil plus spot UV on one pass, the workhorse for cosmetics, wine and spirits cartons and luxury boxes. Choose the Cold Foil & Hologram Transfer Line (GUVY-1060ACS) when customers require anti-counterfeit features — tobacco, alcohol and pharmaceutical packaging — since hologram cast & cure produces the tear-and-no-film characteristic that composite lamination cannot replicate. Choose the Screen Spot UV Coating Line (GUV/IR-1060) if your work is high-gloss, spot-gloss and tactile wrinkle-texture varnish rather than metallic decoration.
Why cold foil instead of hot foil stamping?
Cold foil transfers through a UV-curable adhesive at room temperature, so there are no engraved dies and no heat management. Three consequences matter commercially. First, artwork changes are made with screens and plates only — no die lead time, so short runs and frequent design changes stop being a cost problem. Second, room-temperature curing removes the energy load of heated stamping dies, roughly halving the energy consumed for the same decoration. Third, the process runs inline with spot UV and, on the ACS configuration, hologram transfer, so three premium decorations are applied in a single pass instead of three separate handling steps. Hot stamping still has its place on very small, very fine detail work; for metallic area coverage on packaging, cold foil is the volume answer. Background reading: our cold foil stamping machine guide.
Can I add hologram or spot UV later, or must I buy the full line now?
You can add later. The lines use a modular splicing design around a common screen-press base — compact structure, strong compatibility — so an additional finishing module is bolted on without replacing the GST-1060. That is the normal growth path: converters start with the cold foil configuration, then add hologram cast & cure when an anti-counterfeit account requires it. Two things to plan for at the first order: the additional module changes total connected load (approximately 75 kW for the cold foil line, 94 kW with hologram, 40 kW for the dedicated spot UV line), and line height, conveyor speed and electrical specification are customisable — so tell us at quotation stage which modules you expect to add, and the first line is laid out to receive them.
What sheet size, speed and registration accuracy do the lines deliver?
Maximum sheet is B1 format, 1060×740 mm. The stop-cylinder screen press base runs up to 4,000 sheets/h with registration accuracy of ≤0.1 mm — the tolerance premium decoration actually requires. Spot UV and hologram transfer run at up to 4,000 sheets/h; cold foil stamping runs at 2,500 sheets/h. On the dedicated spot UV line the curing tunnel gives 1,100 mm effective curing width with conveyor speed adjustable 0–50 m/min, and a dedicated wrinkle-effect lamp set produces tactile matte-on-gloss finishes. Cold-air paper receiving is standard across the lines, which prevents post-cure sheet deformation before the stack goes to die-cutting.
Can the line connect to presses I already own?
Yes — the lines are designed to be spliced into an existing post-press section rather than replace it. They connect to offset printing presses (Heidelberg, KBA, Komori, Mitsubishi), to single-colour gravure presses, and to spot UV / IR varnishing and curing units. Line height, conveyor speed and electrical specification are all matched to your factory’s existing equipment baseline at the configuration stage. Send us a layout of the presses and the floor space the line has to fit into, and the proposal comes back with a line drawing rather than a generic footprint.
Lead time, certification and delivery to Russia?
Payment terms: 30% T/T deposit, 70% T/T before shipment. Production: 40–60 working days from receipt of deposit, confirmed at quotation. Shipment: by vessel to St. Petersburg or Novorossiysk, typically 35–45 days transit. Certification: CE as standard; EAC conformity for the Russian Customs Union is arranged through our partner HD RUS LLC (Khimki, Moscow region), 30–45 days, included in the standard project schedule. Lines ship on 380V / 50Hz electrical and pneumatic specification for the Russian and CIS markets, and installation, commissioning and Russian-language operator training are executed by HD RUS engineers. Warranty: 12 months. Request a line quotation →

Ready to spec your finishing line?

Tell us your sheet size, target speed, and which processes you need. We respond within 24 hours with a quotation, line layout, and EAC documentation plan.
