Top 10 Flute Laminating Machine Manufacturers (2026)

If you are shortlisting flute laminating machine manufacturers in 2026, you will quickly notice two things: almost every serious builder is based in China, and almost none of them publish the information you actually need to compare them — speeds, formats, component brands or prices. This guide does that work for you.

Below you will find a comparison table and short profiles of the ten flute laminating machine manufacturers we believe matter most this year, based on installed base, product range, technology and export support. (Flute laminators are also called litho laminators, so you will sometimes see the same companies described as litho laminator manufacturers.) Each profile ends with a one-line verdict on who the brand suits best.

Transparency note: this guide is published by SAGLIN, which sells its own lamination lines and appears in the list. We have kept every claim about other manufacturers factual and verifiable from their published specifications, and we tell you honestly where a competitor is the stronger choice.

How we selected the top 10

We ranked the flute laminating machine manufacturers on four criteria that predict how a machine performs three years after installation, not just on demo day. We also excluded pure trading companies that operate as flute laminating machine suppliers without their own factory — resale margins buy you nothing at service time.

• Product depth — does the maker cover litho-to-corrugated and board-to-board lamination, in more than one format class?
• Proven speed and registration — published sheets/hour and lamination tolerance, not brochure adjectives.
• Component quality — servo systems, vacuum pumps and electrics from named brands (Siemens, Becker, Schneider, Yaskawa) versus unnamed generics.
• Export and after-sales reality — certification (CE, EAC), overseas installs, spare-parts logistics and warranty terms.

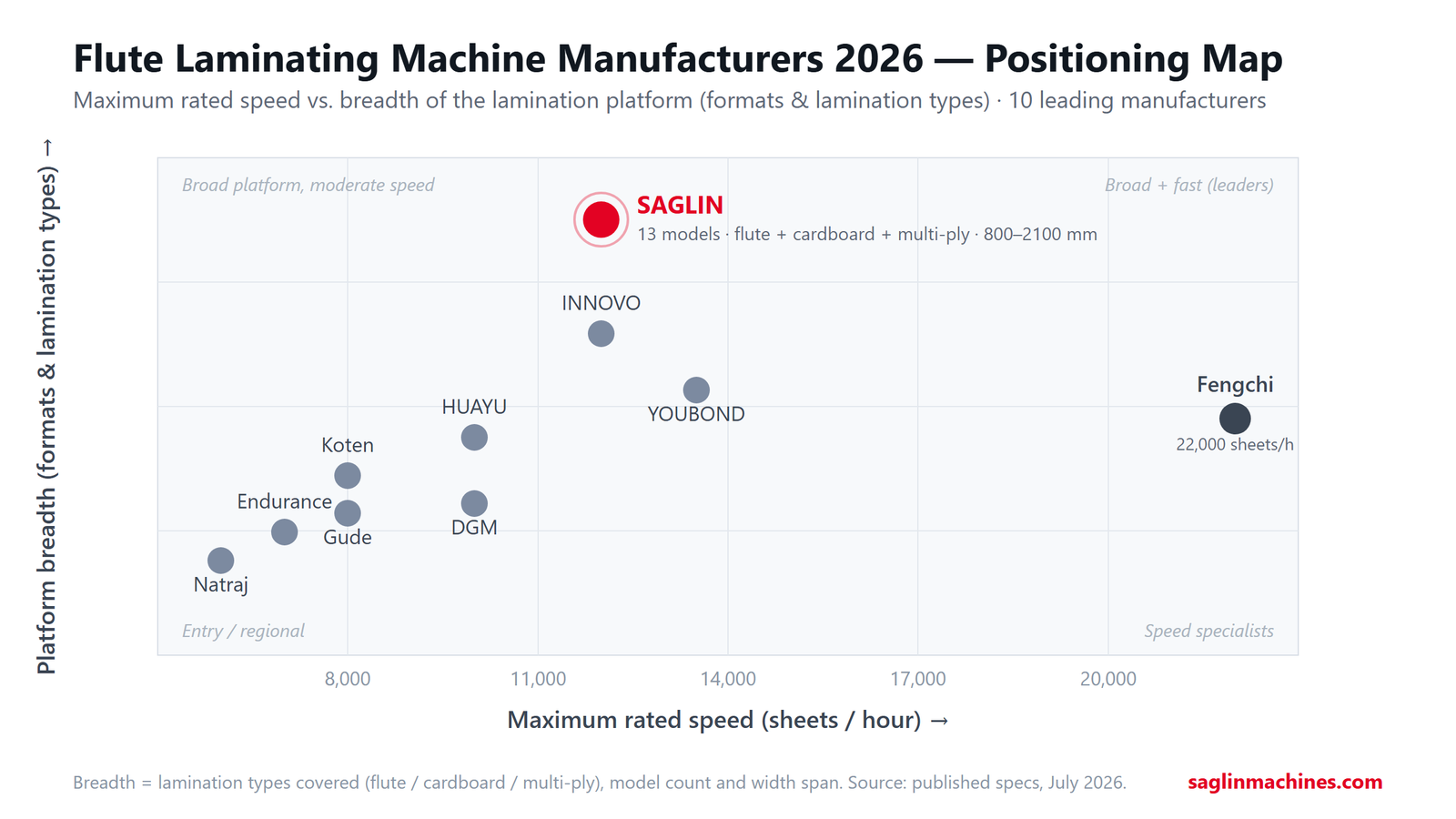

Top 10 flute laminating machine manufacturers compared

Manufacturer	Base	Product focus	Max rated speed	Best for
SAGLIN	China (factory since 2008)	13-model platform: flute + cardboard + multi-ply, 800–2100 mm	12,000 sheets/h	Full-range buyers; CIS/EAC markets
Fengchi	Guangdong, China	Full-servo high-speed flute laminators, stackers	22,000 sheets/h	High-volume 24/7 plants
YOUBOND	Wenzhou, China	5-ply / 3-in-1 flute laminators	150 m/min	Multi-ply board producers
INNOVO	Anhui, China	28+ laminator models, wide price span	~12,000 sheets/h	Budget-transparent sourcing
HUAYU	China (since 1995)	BZJ auto + semi-auto flute laminators	~10,000 sheets/h	Semi-auto entry level
DGM Technology	China	Factory-direct flute laminator lines	~10,000 sheets/h	Price-led buyers
Koten	Ruian, China	Flute lamination + window patching	~8,000 sheets/h	Carton plants combining processes
Gude	Anhui, China	Folder gluers + flute laminators	~8,000 sheets/h	Folding-carton lines on one PO
Endurance	Intl. sales, China mfg.	5-ply heavy-duty flute laminators	~7,000 sheets/h	English-speaking buyers, heavy board
Natraj	Palwal, India	Automatic + semi-auto flute laminators	~6,000 sheets/h	Indian subcontinent, local service

Speeds are the manufacturers’ own maximum ratings for their fastest model; sustained production speed is normally 60–80% of the headline figure. Where a maker publishes no figure, we estimate from the model class (marked ~).

1. SAGLIN

SAGLIN builds its lamination lines at a partner factory that has specialised in laminating machinery since 2008, with two production bases totalling around 28,000 m² and machines running in more than 60 countries. SAGLIN itself ships five to ten machines every month and supports customers in more than 20 countries, with CE certification and EAC support for CIS markets.

The lamination platform is the broadest in this list: thirteen models across three series, from 800 mm boutique formats to 2100 mm wide-format lines. The flute series (DX-1180 to DX-2100) handles litho-to-corrugated work at up to 12,000 sheets/hour with ±1 mm registration — the SAGLIN-DX-1450 is the workhorse. The cardboard series (DX-800 to DX-1410, led by the SAGLIN-DX-1207) laminates board-to-board at ±0.5 mm for premium retail packaging. Critical components are European: Siemens main motors, Becker vacuum pumps, Schneider electrics and Iwis chains. Standard terms are a 12-month warranty and 40–60 working days delivery.

Best for: plants that want one supplier covering flute, cardboard and multi-ply lamination — especially exporters to Russia and the CIS, where EAC paperwork and Russian-language HMIs are standard, not extras.

2. Fengchi (Guangdong Fengchi Printing Machinery)

Founded in 2009, Fengchi is the volume leader in this market: more than 3,200 lines installed in over 60 countries, roughly 500 machines delivered a year, 11 overseas service and support centres and a patent portfolio around full-servo lamination. Its headline GW-series machines are the fastest here, rated to 22,000 sheets/hour with stable 24/7 production quoted at about 13,000 sheets/hour.

Best for: large box plants running high-volume litho-lam around the clock, where line speed and a nearby service centre outweigh price.

3. YOUBOND (Wenzhou YOUBOND Machinery)

YOUBOND’s signature machine is a 5-ply automatic flute laminator that integrates one paper-feeding section, two corrugated-feeding sections and two gluing units — laminating three layers in a single pass at up to 150 m/min. The company is unusually open about its component sourcing: Becker pumps, Siemens motors and Yaskawa servos appear through the range.

Best for: producers of 5-ply and 7-ply heavy board who want single-pass multi-layer lamination rather than two passes on a standard machine.

4. INNOVO (Anhui Innovo Bochen Machinery)

INNOVO fields one of the widest catalogues in the segment — more than 28 laminator models from a 20,000 m² facility — and is the only major maker that publishes its price span openly (roughly US$24,500 for entry semi-automatic models up to US$1.25 million for flagship lines). That transparency makes it a useful benchmarking reference even if you buy elsewhere.

Best for: buyers who want published price anchors and a model ladder they can climb without changing supplier.

5. HUAYU

Manufacturing carton machinery since 1995, HUAYU is one of the longest-established names here. Its BZJ series covers fully automatic and two grades of semi-automatic flute laminating machines, sold alongside its core corrugated box-making equipment.

Best for: plants stepping up from manual mounting to a first semi-automatic machine at a conservative budget.

6. DGM Technology

DGM positions itself as a factory-direct supplier of automatic flute laminating machines, competing primarily on price for standard-format automatic lines. Specification depth on published pages is thinner than the leaders’, so ask for a full technical sheet and component list before comparing quotes.

Best for: price-led tenders where a standard 1300–1600 mm automatic line is being sourced against a tight budget.

7. Koten (Ruian Koten Machinery)

Koten builds flute laminating machines alongside window patching and other carton-finishing equipment from the Ruian machinery cluster. For converters buying more than one finishing process, bundling can simplify commissioning and spares.

Best for: carton plants adding lamination and window patching in one project.

8. Gude (Anhui Gude Machinery)

Gude is best known for folder gluers, with automatic flute laminators as a complementary line. Documentation is extensive if uneven; as with DGM, insist on a component brand list.

Best for: folding-carton plants that want a gluer and a laminator on one purchase order.

9. Endurance Machinery

Endurance sells Chinese-built 5-ply flute laminators through an English-first sales operation with unusually detailed product documentation — its 5-ply machine page walks through 19 structural points with a full specification table and customer reviews.

Best for: English-speaking buyers who value Western-style documentation and pre-sale engineering dialogue.

10. Natraj Machinery

Based in Palwal, India, Natraj manufactures automatic and semi-automatic flute laminators for the subcontinent market. For Indian converters, local service response and rupee pricing can outweigh the spec advantages of imported Chinese lines.

Best for: Indian box plants prioritising same-country service over maximum speed.

How to choose between them

Most flute laminating machine manufacturers look identical in a brochure. Three questions cut the list down fast:

1. What do you laminate? Litho-to-corrugated only → almost any flute laminator manufacturer on this list can quote a standard automatic line. Board-to-board for rigid boxes too → you need a maker with a true cardboard series (±0.5 mm class), which most flute-only builders do not offer.
2. What speed do you actually sell? Divide your real monthly litho-lam volume by your shifts. Most plants under 500,000 sheets/month are better served by a stable 10,000–12,000 sheets/h line than by paying for 22,000 sheets/h they will never run.
3. Where will the machine live? CIS and EAC-zone buyers should shortlist makers with EAC certification and Russian-language HMIs from the factory; EU buyers should verify CE is machine-specific, not a catalogue claim.

For a deeper walk-through of specifications, glue systems and pricing, see our full flute laminating machine buyer’s guide.

Frequently asked questions

Who is the largest flute laminating machine manufacturer?

By installed base, Fengchi is the volume leader, with more than 3,200 lines installed in over 60 countries and around 500 machines delivered per year. “Largest” does not automatically mean best fit — product breadth, component quality and regional support matter more for most buyers.

How much does a flute laminating machine cost in 2026?

Published market pricing runs from roughly US$25,000 for entry semi-automatic machines to over US$1 million for flagship wide-format full-servo lines. A typical automatic 1450 mm line for a mid-size box plant falls between those extremes; request a configured quote rather than relying on list prices, because feeders, stackers and glue systems move the number significantly.

Are Chinese flute laminating machines good quality?

The top Chinese flute laminating machine manufacturers now dominate this category worldwide; there is no meaningful European or American production of new flute laminators in volume. Quality varies by maker, so judge each machine on its servo and component brands (Siemens, Becker, Schneider, Yaskawa), published registration tolerance, and verifiable installs in your region — not on country of origin.

What speed flute laminator do I need?

Match the machine’s stable production speed — usually 60–80% of the headline rating — to your real monthly volume. As a rule of thumb, 6,000–8,000 sheets/h suits plants up to ~300,000 sheets/month on one shift; 10,000–12,000 sheets/h covers most mid-size plants; 15,000+ sheets/h only pays for itself in dedicated high-volume litho-lam operations.

What is the difference between a flute laminator and a cardboard laminating machine?

A flute laminator bonds a printed sheet onto corrugated (fluted) board, typically at ±1 mm registration. A cardboard laminating machine bonds flat board to flat board at tighter tolerance (±0.5 mm class) for rigid and premium retail packaging. Some platforms — including SAGLIN’s — offer both as separate series; most flute-only manufacturers do not.

Talk to SAGLIN

Tell us your sheet sizes, board grades and monthly volume, and our engineers will tell you honestly which machine class fits — unlike most flute laminating machine manufacturers, we will say so plainly when a competitor’s configuration is the better match. Demos on your own substrates can be arranged at the factory.

Request a Quote

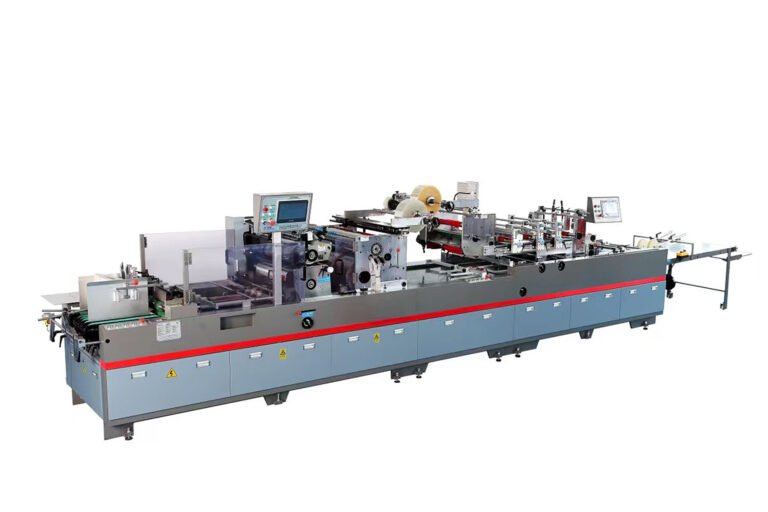

Related reading: Flute Laminating Machine: Buyer’s Guide for Corrugated · Window Patching Machine: Buyer’s Guide
